World Class Glass Printing Table Flat With Auto Dryer

Flat glass printing table.( taper table optional)
Easy operation through continuous moving heater system.
Increased production as the drying is continuos and runs behind the printer
Individual heater switches to put off the unwanted heating area.
Electronic contactor switching for noise free and zero maintenance.
AC motor auto dryer gives very smooth forward reverse, stop and move operations
Easy to use digital micro controller to control all the parameters like, drum rotation, temperature etc..
Speed can be adjusted as per the printing speed.
Very precise heating through out the length of the heating Chamber.
Low noise while the machine is in running condition.

Model	GTF 5 DG	GTF 5 D	GTF 5 TRG	GTF 5 TR
Glass Table	1500mm / 60 inch	1500mm / 60 inch	1500mm / 60 inch	1500mm / 60 inch

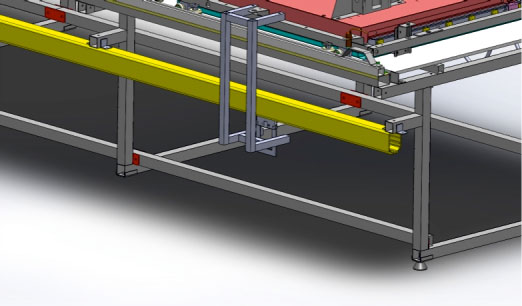

Electrical Duct	YES	YES	NO	NO
Frosted glass	YES 12mm	NO, to be purchased by client	YES 12mm	NO, to be purchased by client

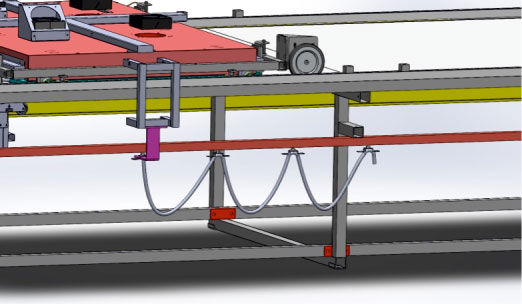

Track rail (wire type)	NO	NO	YES	YES
Stopper Gatta block square or Round	1 for every feet	1 for every feet	1 for every feet	1 for every feet
Height of table	33 inches	33 inches	33 inches	33 inches

Model	Dryer length	Dryer width	Heater wattage	Total heaters	Motor	Power	Power consumption
GTF IR 1500	1500mm / 60 inch	900mm / 36inch	12KW	12 x 1kw each	AC	12.5kw/415V ?? ??	6 to 8 units per Hr
